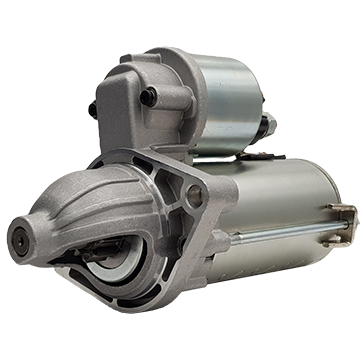

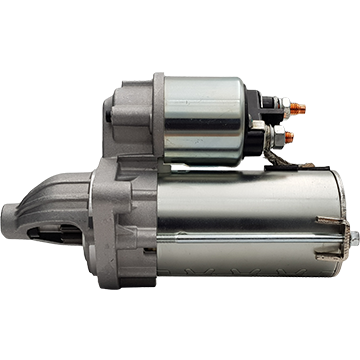

Starter motor, Fiat Panda – Palio – Punto – Siena 1.2L – 1.3L Diesel D6G, 12V, 1.3KW, 9T – STR0494
Description
Starter motor, Fiat Panda – Palio – Punto – Siena 1.2L – 1.3L Diesel D6G, 12V, 1.3KW, 9T
Additional information
| Voltage | 12V |
|---|---|
| Power | 1.3KW |

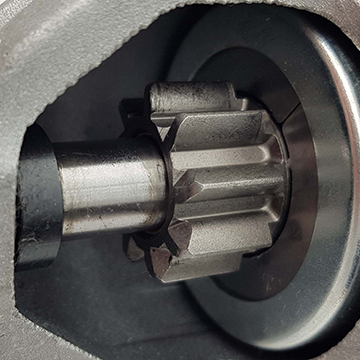

| No of Teeth | 9 |

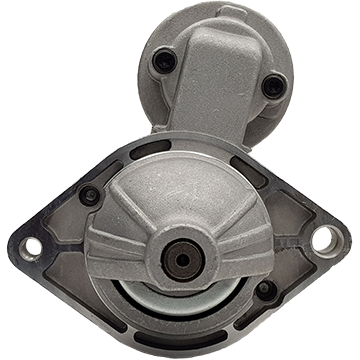

| Mounting holes | 2 |
| Rotation direction | CW (CLOCKWISE) |
| Gearing type | PMGR (PERMANENT MAGNET – GEAR REDUCTION) |
| Item model | D6G |
| Engine type/number | ALFA ROMEO MITO 1.3L MJTD FIAT 500 1.3L DIESEL MULTIJET FIAT 500 1.3L MJTD FIAT 500C 1.3L DIESEL MULTIJET FIAT 500C 1.3L MJTD FIAT ALBEA 1.3L JTD FIAT DOBLO 1.2L DIESEL FIAT DOBLO 1.2L JTD 16V FIAT DOBLO 1.3L DIESEL FIAT DOBLO 1.3L DIESEL MULTIJET FIAT DOBLO 1.3L JTD 16V FIAT DOBLO 1.3L JTD 16V MULTIJET FIAT DOBLO 1.3L MJTD FIAT DOBLO 1.3L MTJ 16V FIAT DOBLO 1.9L JTD FIAT EGEA 1.3L MJTD FIAT FIORINO 1.3L MJTD FIAT GRANDE PUNTO 1.3L 16V FIAT GRANDE PUNTO 1.3L DIESEL MULTIJET FIAT GRANDE PUNTO 1.3L MJTD FIAT IDEA 1.3L 16V JTD MULTIJET FIAT IDEA 1.3L DIESEL MULTIJET FIAT IDEA 1.3L JTD MULTIJET FIAT IDEA 1.3L MJTD FIAT LINEA 1.3L MJTD FIAT PALIO 1.3L DIESEL FIAT PANDA 1.2L DIESEL FIAT PANDA 1.3L DIESEL FIAT PANDA 1.3L DIESEL MULTIJET FIAT PANDA 1.3L DIESEL MULTIJET 4X4 FIAT PANDA 1.3L JTD FIAT PANDA 1.3L MJTD FIAT PANDA 1.3L MJTD 4X4 FIAT PUNTO 1.2L DIESEL FIAT PUNTO 1.3L 16V FIAT PUNTO 1.3L 16V JTD FIAT PUNTO 1.3L DIESEL FIAT PUNTO 1.3L JTD FIAT PUNTO 1.3L JTD 16V FIAT QUBO 1.3L MJTD FIAT SIENA 1.3L JTD FIAT STRADA 1.3L FIAT STRADA 1.3L M-JET 16V FIAT TIPO 1.3L MJTD LANCIA MUSA 1.3L 16V JTD MULTIJET LANCIA MUSA 1.3L DIESEL MULTIJET LANCIA MUSA 1.3L JTD MULTIJET LANCIA MUSA 1.3L MJTD LANCIA YPSILON 1.3L DIESEL MULTIJET LANCIA YPSILON 1.3L JTD LANCIA YPSILON 1.3L MJTD OPEL ASTRA 1.3L CDTI OPEL COMBO 1.3L CDTI OPEL CORSA 1.3L CDTI OPEL CORSA 1.3L CDTI 16V VAUXHALL COMBO 1.3L CDTI |
| OEM Number | D6G321, 197526, 438168, 51810302, 51880229, 55353257, 6202071, 6202099, R1540025 |
| Alternate Part# | • A=Centre to Centre of Mounting Holes • A1=Centre to Centre of Mounting Holes • A2=Centre to Centre of Mounting Holes • A3=Centre to Centre of Mounting Holes • B=Centre to Centre of Mounting Holes • B1=Centre to Centre of Mounting Holes • B2=Centre to Centre of Mounting Holes • B3=Centre to Centre of Mounting Holes • C=Centre to Centre of Mounting Holes • C1=Centre to Centre of Mounting Holes • C2=Centre to Centre of Mounting Holes • C3=Centre to Centre of Mounting Holes • D=Distance from Face Flush to where Bendix/Drive is Forward/Engaged • E=Bendix-Drive at Rest (Distance from Face Flush to where Bendix/Drive is at Rest) • F=Distance from Face Flush to where Solenoid Ends (Including Terminals) • G=Spigot Outside Diameter (Where Starter Fits into Bell Housing) • H=Nose Width at thickest point. • I=Outside Diameter of Bendix/Drive Gear (Vernier Locked on Teeth) • I2=Outside Diameter of Bendix/Drive Gear (Max OD) • J=Total Height of Starter • K=Total length of starter • KW=Kilowatts • L=Clockwise (CW) or Anti/Counter Clockwise (CCW) • MH=Number of Starter Mounting Holes • N=Nose Length From Face Flush to End of Nose • ODY=OD of Yolk/Field Coil Housing • S=Same as "G" – Spiggot OD (Drive End Bracket Spec Diagram) • Teeth=Number of Teeth • U=Inside Diameter of Mounting Hole and if Threaded • U1=Inside Diameter of Mounting Hole and if Threaded • U2=Inside Diameter of Mounting Hole and if Threaded • UDS=Distance of Mounting Hole from Spiggot • UDS1=Distance of Mounting Hole from Spiggot • UDS2=Distance of Mounting Hole from Spiggot • V=Inside Diameter of Mounting Hole and if Threaded • V1=Inside Diameter of Mounting Hole and if Threaded • V2=Inside Diameter of Mounting Hole and if Threaded • VDS=Distance of Mounting Hole from Spiggot • VDS1=Distance of Mounting Hole from Spiggot • VDS2=Distance of Mounting Hole from Spiggot • VOLTS=Volts • W=Inside Diameter of Mounting Hole and if Threaded • W1=Inside Diameter of Mounting Hole and if Threaded • W2=Inside Diameter of Mounting Hole and if Threaded • WDS=Distance of Mounting Hole from Spiggot • WDS1=Distance of Mounting Hole from Spiggot • WDS2=Distance of Mounting Hole from Spiggot • X=Inside Diameter of Mounting Hole and if Threaded • X1=Inside Diameter of Mounting Hole and if Threaded • X2=Inside Diameter of Mounting Hole and if Threaded • XDS=Distance of Mounting Hole from Spiggot • XDS1=Distance of Mounting Hole from Spiggot • XDS2=Distance of Mounting Hole from Spiggot |
